Yudian AI-7021D5 Dual Temperature Transmitter
- It provides 2 channels of configurable inputs, and supports multiple voltage, RTD, thermocouple inputs with auto reference junction compensation. If parallel connected to an external precise resistance, it accepts current signal input. Each channel has its own digital filtering and can adjust its filtering degree.
- It generates two isolated current outputs, 4-20mA or 0 – 20mA. The range of retransmission output can be freely defined.
- This model uses high performance hardware, which leads to greatly decreased temperature drift and interference among the two channels. As a result, this multi-channel instrument achieves the same measurement accuracy and anti-interference ability as that of single channel instrument.
- It generates digital adjusted current output without potentiometer, making the current output precise and stable.

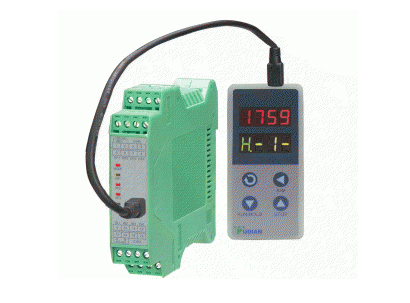

- The model is DIN rail mounted. Its width is only 22.5mm. The instrument can be easily configured by connecting to our E8 handset display.
- Universal power supply of 100-240VAC or 24VDC.
- ISO9001 and CE certified and meets EMC standards. Its power and all I/O terminals pass 4KV/5KHz EFT test and can work reliably under interference.
Input(Single or Dual) : All type of thermocouple and PT100‚ cu50 (RTD)‚
linear voltage‚ MV‚ linear current
Re transmission O/P (Dual) : Linear current (4 20 mA) or voltage (Freely defined)
Power supply : SMPS 100~240VAC‚ 50 Hz
Re transmission accuracy : 0.3%FS± 1 Digit
Size (W x H) : 22.5 x 100 (DIN rail)
Other features : Input offset
Operating ambient : 10C~60°C
humidity : <90%RH
