Yudian AI-526 Universal PID Controller

  • Applicable for accurate controls of Temperature, Pressure, Flow, Level and Humidity etc.
  • Support Various Thermocouples, RTDs, Linear Voltages / Currents / Resistance
  • Modularization output supports SSR voltage, Linear Current / Voltage, Relay Contact, TRIAC non-contact switch,
  • Single phase / three-phase Thyristor zero-cross triggering.
  • Support multiple alarm function of high limit, low limit High Deviation and Low Deviation, Providing alarm blocking at the power start-up to avoid false- alarm.
  • Typical baud rate AIBUS or MODBUS protocol, supporting RS485 OR RS232 communication port

Inputs: Universal all type of Thermocouple and RTD PT-100
Output: Single Relay, Dual Relay, SSR, Voltage, 4-20mA, SCR and TRIAC
Control Action: ON/OFF and AI PID wit Autotunning
Alarm: High‚ Low‚ High deviation and Low deviation
Communication: RS-485, RS 232 (Modularized Installable)
Re Transmission O/P: Linear current or voltage(SV OR PV)
Power Supply: SMPS 100~240VAC/DC‚ 50 Hz OR 24 V DC
Panel Cutout Size: 96×96mm, 72×72mm, 48×48mm, 48×96mm, 96×48mm

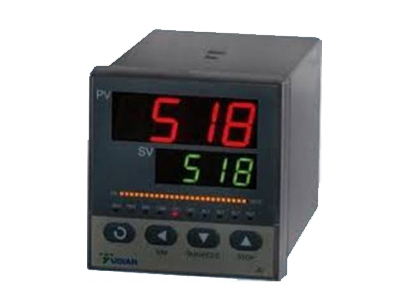

Yudian AI-518P

  • Economical, wide application, precise control
  • High accuracy: 0.25% FS ±0.1°C
  • APID, AMPT, PID, ON-OFF selectable with auto-tuning
  • Dual 4-digit display of process & set point
  • LED bar graph selectable for display
  • Universal inputs: Thermocouple, RTDs, Linear currect / voltage
  • Wide variety of alarm modes selectable
  • Fit worldwide power supplies
  • CE,UL, RoHS,ISO9001 approved/certificated

Inputs : Universal [All type of thermocouple and PT100‚ Cu50 (RTD)‚ linear voltage‚ linear current‚ MV‚ 2 wire transmitter input]
Output : Relay‚ SSR‚ Linear voltage‚ linear current‚ SCR phase shift trigger‚ servo valve control /modulating output(AI 808) (Modularized installable); soft start option (AI 808) Output range limit
Control algorithm : AI PID / AI MPT; heating / cooling dual output with 2 sets of PID; auto tuning; auto/manual bump less transfer (AI 808)
Set point : Set point range limit; dual set point switch; remote set point
Alarm : High‚ low‚ high deviation and low deviation
Communication : RS 485‚ RS 232 (Modularized Installable)
Retransmission Output : Linear current or voltage(SV OR PV)
Power supply : SMPS 100~240VAC/DC‚50 Hz OR 24 V DC
Accuracy : 0.2%FS
Display resolution : 0.1℃ for K, E, T, N, J, Cu50, Pt100; 1℃ for S,R
Size : 48 x 48 x 95 (D2 size)‚ 72 x 72 x 95 (D size), 48 X 96 X 95 (E size), 96 X 48 X 95 (F size), 96 x 96 x 100 (A size) ,E5 (DIN rail mounting), A2 (Light bar output display)

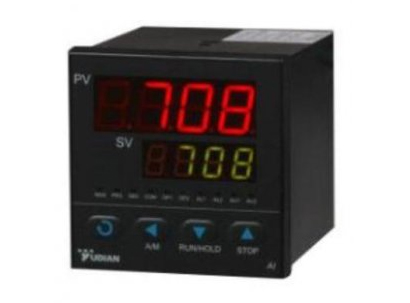

Yudian AI-708/808/ 719 Series PID Controller

  • Digital calibration technology for input measurement with input measurement accuracy 0.2% F.S., non-linear calibration tables for standard thermocouples cheap replica watches and RTDs are available in the instrument.
  • Advanced AI control algorithm, no overshoot and with the function of auto tuning and self-adaptation.
  • Adopt advanced modular structure,plentiful output options,satisfy the requirements of various applications, and make quick delivery and conveniences the maintenance of the instrument.
  • Friendly and customized operating interface,easy learning Fake Watches Online For Sale and simple manipulation. Any parameter can be promoted to immediate operator access in Field Parameter Table or password protected in Full Parameter Table.
  • High quality and performance hardware design, using high performance tantalum capacitor or ceramic capacitor,it consumes less electricity, experiences less temperature shifting, provides higher stability and reliability, and can work in a wider range of temperature.
  • ISO9001 best replica watches and CE certified, complying with EMC requirement,achieving world class level of quality,anti-interference ability and safety.

Input : Universal [All type of thermocouple and PT100‚ Cu50 (RTD)‚ linear voltage‚ Linear current‚ MV‚ 2 wire transmitter input
Measurement accuracy : 0.2%FS+ 0.1 ℃
Output : Relay‚ SSR‚ linear voltage‚ linear current‚ SCR phase shift trigger‚ servo valve
Alarm : High‚ low‚ high deviation and low deviation
Communication : RS 485‚ RS 232 (Modularized installable)
Power supply : 100~240VAC, -15%, +10% / 50-60Hz; 120~240VDC; or 24VDC/AC, -15%, +10%.
Power consumption : ≤5W
Operating Ambient : Temp:-10~60℃; humidity ≤90%RH
Front panel dimension : 96×96mm, 160×80mm, 80×160mm, 48×96mm, 96×48mm, 48×48mm,72×72mm
Panel cutout dimension : 92×92mm, 152×76mm, 76×152mm, 45×92mm, 92×45mm, 45×45mm,68×68mm
Depth behind mounting surface : 100mm

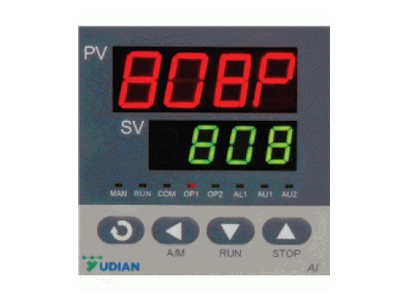

Programmable Controller AI-708P/808P

  • High Accuracy FS 0.1%
  • Auto-Tune PID Function
  • RS-485 Communication
  • ºC / ºF Selectable
  • Manual/Auto Control
  • Event Output
  • 50 Segments Programs (30+20)

    • Inputs : Thermocouple : K,S,R,T,E,J,B,N,WRe3-WRe25, WRe5-WRe26
    RTD : Cu50, Pt100
    Linear Voltage : 0~5V, 1~5V, 0~1V, 0~100mV, 0~60mV,0~20mV,0~10V
    Linear Current : 0~10mA, 0~20mA, 4~20mA
    Control Output : Relay: 2A / 250V
    SSR Drive : 0 ~ 12VDC
    Linear Current Output : 0~20mA, 4~20mA
    TRIAC (Singe Phase) : Zero Crossing , Phase Shift
    Alarm Outputs : Relay - 1A / 250V SSR Drive - 0 to 12VDC
    Communication : RS-485,RS-232(Plug-in Modules)
    Power supply : 100-240VAC (50/60Hz) or 24VDC
    Accuracy : FS +/- 0.1%, Sample Time : 250ms
    Display resolution : 0.0ºC / 0.0ºF, 0.000 A / V
    Dimensions (W x H) : 96 x 96mm,160 x 80mm,80 x 160mm,72 x 72mm,96 x 48mm,48 x 96mm

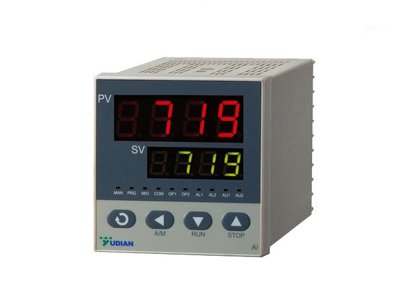

    Process Controller AI-719

    • Use digital calibration technology for input measurement with input measurement accuracy F.S.0.25%, Support standard thermocouples and RTDs, maximum resolution is 0.01℃
    • Use advanced artificial intelligent control algorithm, no overshoot and with the function of auto tuning (AT) and self-adaptation.
    • Use advanced modular structure, conveniently providing plentiful output options, able to satisfy the requirements of various applications, make quick delivery and convenience the maintenance of the instrument.

    Input type: (Any of below specifications can be used selectively in the same instrument) Thermocouple: K, S, R, E, J, N, T, B, N, WRe3-WRe25, WRe5-WRE26 Resistance temperature detector: Cu50, Pt100
    Measurement accuracy : 0.2%FS ± 0.1℃
    Resolution : 0.1 or 0.01℃ for temperature measurement, 1/20000 unit for linear signals, and minimum voltage resolution is 1uV
    Temperature drift : ≤0.01%FS /℃ (typical value is 50ppm/℃)
    Sampling period : read A/D converter 12.5 times per second
    Response time : ≤0.5s ( when digital filter parameter FILt=1); ≤3s for 0.01℃ measurement
    Alarm function : high limit, low limit, deviation high limit and deviation low limit; with alarm blocking at the beginning of power on.
    Control mode : On-off control mode (Hysteresis adjustable) Standard PID with auto tuning AI PID with auto tuning, adopting Yudian AI algorithm.
    Control period : 0.2～120.0 seconds selectable, and it should be integer times of 0.24 second. 5 Output mode (modularized)
    Relay output (NO+NC): 250VAC/2A or 30VDC/2A
    TRIAC no contact discrete output (NO or NC) : 100～240VAC/0.2A (continuous), 2A (20mS instantaneous, repeat period≥5s)
    SSR Voltage output : 12VDC/30mA (used to drive SSR).
    Thyristor zero crossing trigger output: can trigger TRIAC of 5～500A, a pair of inverse paralleled SCRs or SCR power module. Single-phase or three-phase trigger is selectable.
    Linear current output : 0～20mA, 4～20mA (Output voltage ≥11V, maximum load resistor 500ohm, output precision 0.2%FS)
    Electromagnetic compatibility (EMC) : ±4KV/5KHz according to IEC61000-4-4; 4KV according to IEC61000-4-5.
    Isolation with standing voltage : between power, relay contact or signal terminal ≥2300VDC; between isolated electroweak terminals ≥600VDC
    cPower supply : 100～240VAC, -15%, +10% / 50-60Hz; 120～240VDC; or 24VDC/AC, -15%, +10%.
    Power consumption : ≤6W 6
    Operating Ambient : temperature -10～60℃; humidity ≤90%RH

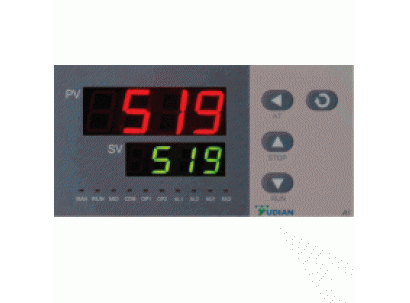

    Process Controller AI-519

    • Universal thermocouples and selectable RTDs and linear current/voltage signals. Integrating non-linear graduation tables, digital calibration and auto zero technology to achieve accurate and stable measurement.
    • Advanced artificial intelligence (AI) control algorithm with auto tuning function without overshooting.
    • Auto/manual bumpless switch and soft-start function.

    Accuracy : FS +/-0.3%, Sample Time : 500ms
    Input : Thermocouple, K, S, R, E, J, N, Cu50, Pt100, Analog signal
    Output : Relay, SSR Drive, Analog signal
    Power Supply : 100-240VAC (50/60Hz) or 24VDC ºC / ºF Selectable
    Communication : RS-485
    Soft Start Function
    Auto/Manual Selectable
    Alarm function : high limit, low limit, deviation high limit and deviation low limit; with alarm blocking at the beginning of power on. 2
    Front panel dimension : 96×96mm, 160×80mm, 80×160mm, 48×96mm, 96×48mm, 48×48mm, 72×72mm
    Panel cutout dimension : 92×92mm, 152×76mm, 76×152mm, 45×92mm, 92×45mm, 45×45mm, 68×68mm

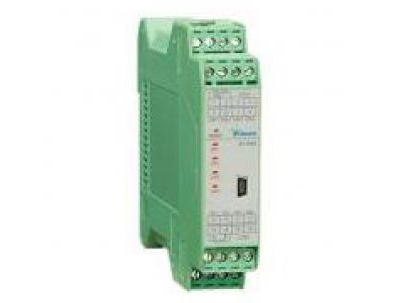

    Yudian AI-7048 4-Loop PID Controller

    • Providing 4 channels of configurable inputs supporting multiple thermocouple inputs with auto reference junction,Compensation and linear voltage inputs with user defined scale.
    • Every channel has its own digital filtering and can adjust its filtering degree.
    • High performance hardware design, which greatly decreased temperature drift and the interference among the four channels. Obtains the same measurement accuracy and anti-interference ability.
    • Every channel has independent high/low alarms, can be allocated to different same alarm outputs.
    • Friendly and customized operating interface leads to easy learning, simple manipulation Up to 12 parameters can be promoted to immediate operator access in field parameter table.
    • Advanced communication functions.
    • Compatible with the communication protocol of other AI series instruments,Communicates with the host computer the same as four independent controllers.
    • New generation D5/E5 rail mounted dimension.
    • ISO 9001 swiss replica watches and CE certified with EMC standard,with world class level of quality,anti-interference ability and safety.

    Inputs : T/C : K, S, R, E, J, T, B, N, WRe5- WRe26 Linear voltage: 0~20mV, 0~60mV, 0~100mV, 0~1V, etc
    Measurement accuracy : 0.2%FS ± 0.1°C
    Sampling rate : 250ms
    Control period : 0.48 sec / 4 channels
    Output : SSR voltage, 12VDC/20mA each channel
    Temperature shift : <=0.01%FS / (typical value is 60ppm/ )
    Electromagnetic compatibility (EMC): ±4KV/5KHz according to IEC61000-4-4; 4KV according to IEC61000-4-5.
    Isolation with standing voltage : Between power, relay contact or signal terminal >=2300VDC;Between SSR voltage output and thermocouple input>=600VDC
    Power supply : 100~240VAC, -15%, +10% / 50Hz, 120~240VDC, or 5VA.
    Operating Ambient : Temperature(-10~60); humidity °C <=90%RH
    Power supply : 100-240VAC or 24VDC
