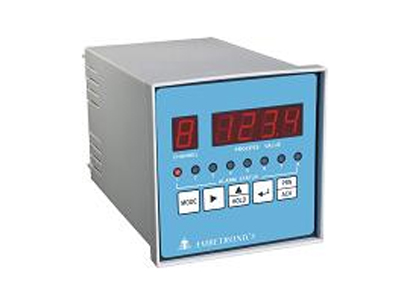

Fixed Input 8Ch.Data Logger/ Scanner TC-800D-series
The TC-800D-series is an 8 Channel fixed input type data logger / data scanner which is available in weatherproof, flameproof and panel mounting type enclosures as per the requirement at Client site.
- This Data Logger /scanner Uses latest micro controller based technology for better accuracy.
- 8 Channel fixed input for all thermocouple, J, K, R, S, T, E, B, N programmable by users, and Fixed Inputs for RTD (PT-100), 4-20mA, 0-10VDC factory settable.
- Easy on-line field calibration by front panel membrane keypad
- Field programmable channel scan time 1 to 59 sec., Logging interval 1 to 9999 sec & Printing Interval 5 to 9999 sec.
- Memory capacity 5193 records for channel
- Field programmable Delay time 1 to 99 sec. for Relay Output
- Optional RS-232 / RS-485 Modbus Serial Port
- Optional Parallel / USB Printing Port.
