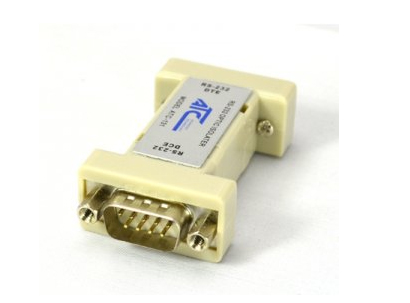

ATC 131

The ATC-131 optically isolates and protects the transmit and receive lines of your RS-232 port from ground loops and power surges up to 2500V RMS for one minute. The data stream is converted from an electrical pulse to an optical beam, then back to an electrical pulse. Because there is no electrical connection between the DTE and DCE sides of the isolator, the ATC-131, unlike a surge suppressor, will not pass large sustained power surges through to your equipment.

This isolator will protect both the transmit and receive lines at baud rates up to 57.6K without the need of an external power supply. Power is derived through the transmit and handshake lines. Special circuitry allows the ATC-131 to be powered regardless of the state of the handshake lines. At least one handshake line must be connected on each side of the isolator. Note that handshake line signals are not passed through the isolator.

  • Protect serial port, inhibit static and surge, prevent ground loop and surge damaging devices
  • Adopt latest high voltage photoelectric parts, powerful anti-jamming capacity
  • Support RS-232 asynchronous communication standard, direct insert into RS-232 interface serially, convenient operation
  • Compact size, optional manifold signals and suitable for various devices.

Interface Feature : Conform to EIA RS - 232 and CCITT v. 24 asynchronous protocol
Working Mode : Asynchronous full duplex
Transmission : Speed 0-57.6kbps
Electric Interface : RS-232 DB9 male RS-232 DB9 female
Isolation : 2500V in succession or 7500V pulse
Power Supply : Power supply to the RS - 232 port (TXD, RTS or DTR)
Product Appearance : Plastic shell 63mmx33mmx17mm
Working Environment : -20℃ to 70℃, 5% to 95% relative humidity

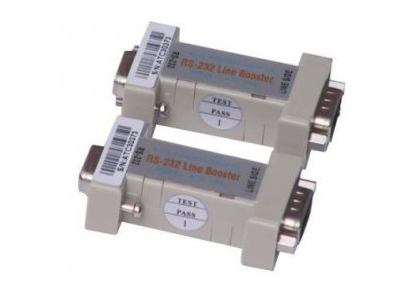

ATC 155

ATC - 155, RS - 232 photoelectric isolation line drives or line transceiver or line repeater insulation. It can be in optical isolation and make two equipment for asynchronous communication of RS - 232 communication distance is increased to 12 km at the same time.

Due to adopt photoelectric isolated technology, completely isolated RS - 232 devices on both ends of the electric and ground wire loop, so as to protect communications equipment from the power supply ground loop interference and surge damage, significantly improve the stability and reliability of communication system. Due to the changed the RS - 232 interface way of single side transmission, using the double balance transfer, greatly increase the communication distance. In the use of dedicated line of asynchronous point-to-point RS - 232 field, ATC - 155 can be used to meet the needs of interface protection or extended distance.

ATC - 155 volume small, the wire has no special requirement, don't need an external power supply, can be directly inserted to the device of the RS - 232 interface, use very convenient.

Interface Feature One port conforms to EIA RS-232 and CCITT V.24， the other uses special 4-core cooper wire
Connector One side of RS-232 uses DB9 hole connector The circuit side uses DB9 pin connector
Transmission Mode Asynchronous, full duplex or simplex
Distance 24AWG lead for 12KM @600BPS
24AWG lead for 1KM @38.4KBPS
24AWG lead for 100M @57.6KBPS
Isolation 2500V in succession or 7500V pulse
Power Supply Power supply to the RS - 232 port
Transmission Speed 0-57.6kbps
Working Environment -20℃ to 70℃, 5% to 95% relative humidity
Product Appearance Plastic shell 63mmx33mmx17mm

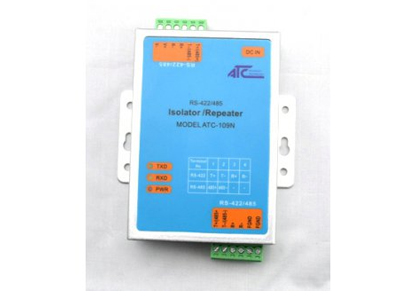

ATC 109N

ATC-109N data repeater is a kind of data relay communication product of photoelectric isolated RS-422/RS-485. It can be used with ATC-108 Photoelectric Isolation Interface Converter in combination. ATC-109N data repeater can prolong the communication distance of RS-422 /RS-485 bus network and increase the number of RS-422/RS-485 bus network devices.

The inner circuit of ATC-109N Photoelectric Isolation Data Repeater can detect data direction and switch to control it automatically, conveniently to form a RS-485 network without any shake hand signal. This kind of RS-485 control is fully transparent and need not amend software for the former network basing on RS-422/485 working modes. The built in photoelectric isolator and DC/DC converter can offer 3500V isolation voltage and the rapid Transient Voltage Suppressor (TVS) can effectively inhibit lightning and ESD, provide 1000W lightning strike and surge protection power on each line, and prevent lightning strike and common code interference.

Interface Feature Interface is compatible with EIA/TIA RS-485/RS-422 standard
Electric Interface RS-422/RS-485 interfaces are 6-bit screw terminal
Transmission Media Twisted-pair cable or shielded cable
Working Mode Asynchronous half or full duplex
Signal Indication 3 signal indication lights indicate TXD, RXD and PWR
Isolation Isolation voltage 3500VRMS 500VDC sequence
Transmission Speed 0-115.2kbps
Transmission Distance 0-5 km
Working Environment -20℃ to 70℃, 5% to 95% relative humidity
Product Appearance 100mmx86mmx26mm

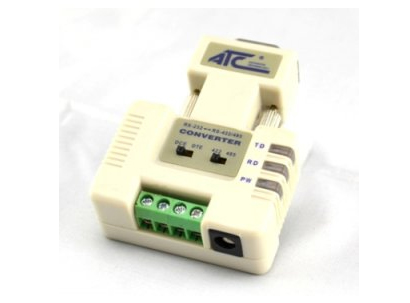

ATC-105 RS-485 to RS-232 Converter with Isolationerter

ATC-105 Isolation Interface Converter is compatible with RS-232C, RS-422, RS-485 standards and capable of converting single end RS-232 signal into RS-422 or RS-485 signal of balanced signal. The built in photoelectric isolator can offer 3500V isolation voltage and the rapid Transient Voltage Suppressor (TVS) can effectively inhibit lightning and ESD, prevent lightning strike and common code interference.

Connect PC, IPC, or portable computer via a DB9 female connector at RS-232 interface, and connect RS-422, RS-485 end via convenient 4-bit terminal. The RS-485 supports dual-line half duplex. The inner circuit of ATC-105 Photoelectric Isolation Interface Converter can detect data direction and switch to control it automatically, conveniently to form a RS-485 network without any shake hand signal. This kind of RS-485 control is fully transparent and need no software amendment for the former working modes basing on RS-232.

ATC-105 Photoelectric Isolation Interface Converter can provide credible connection for point to point, point to multi-point communication. The point to multi-point allows connecting 128 RS-422 or RS-485 interface devices with data transmission speed of 0-115.2KBPS. The 3 power supply and data flow indication light can indicate malfunction. It supports communication modes including RS-232C to RS-422, RS-232 to RS-485 conversion.

Interface Feature : Compatible with EIA/TIA RS-232C, RS-485/RS-42 (2-Wire Half Duplex or 4-wire full Duplex
Electrical Interface : RS-232C-DB9 Female Connector;RS-422/RS-485-4 bit Terminal
Transmission Media : Twisted pair cable or shielded cable
Operation Mode : Asynchronous half or full duplex
Signal Indication : 3 light indication TR, RD, PWR
Isolation : 3500VRMS 500VDC sequence
Transmission Speed : 9600BPS to 115.2 KBPS
Supply : External 9˜12VDC
Transmission Distance : 0˜5 Kilometers (115200˜9600BPS)
Working Environment : -25°C˜70°C, 5%˜95%RH
Size : 125 mm × 54 mm × 25 mm

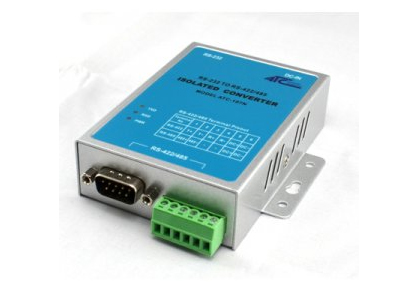

ATC-107N Industrial RS-485 to RS 232 Converter

ATC-107N Isolation Interface Converter is compatible with RS-232C, RS-422, RS-485 standards and capable of converting single end RS-232 signal into RS-422 or RS-485 signal of balanced signal. The built in photoelectric isolator can offer 3500V isolation voltage and the rapid Transient Voltage Suppressor (TVS) can effectively inhibit lightning and ESD, prevent lightning strike and common code interference.

Connect PC, IPC, or portable computer via a DB9 female connector at RS-232 interface, and connect RS-422, RS-485 end via convenient 4-bit terminal. The RS-485 supports dual-line half duplex. The inner circuit of ATC-105 Photoelectric Isolation Interface Converter can detect data direction and switch to control it automatically, conveniently to form a RS-485 network without any shake hand signal. This kind of RS-485 control is fully transparent and need no software amendment for the former working modes basing on RS-232.

ATC-107N Photoelectric Isolation Interface Converter can provide credible connection for point to point, point to multi-point communication. The point to multi-point allows connecting 256 RS-422 or RS-485 interface devices with data transmission speed of 0-115.2KBPS. The 3 power supply and data flow indication light can indicate malfunction. It supports communication modes including RS-232C to RS-422, RS-232 to RS-485 conversion.

Transmission Media : Twisted pair cable or shielded cable
Operation Mode : Asynchronous half or full duplex
Signal Indication : 3 light indication TR, RD, PWR
Protection Grade : 1000 W RS-485/RS-232 Side, 600 W RS-232 Side
Isolation : Isolation Voltage 3500VRMS 500VDC sequence
Transmission Speed : 9600BPS to 5 KM
Supply : External 9˜12VDC
Transmission Distance : 0˜5 Kms (115200˜9600BPS)
Working Environment : -25°C˜70°C, 5%˜95%RH
Size : 95 mm × 85 mm × 26 mm

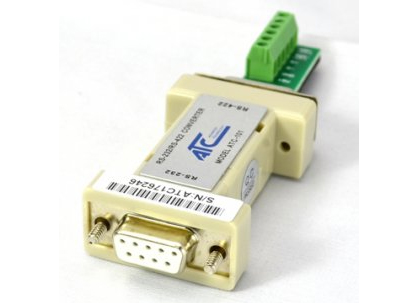

ATC 101

RS-232 to RS-422 Converter

Transmission Media : Twisted pair cable or shielded cable
Connector : RS-232 – DB9 Female; RS-485 – DB9 Male & Terminal Block Connector
Operation Mode : Asynchronous half duplex
Transmission Speed : 9600BPS to 6000 feet
Supply : Port Powered (It Takes power ± 5.5 V form TD or Handshake Lines.)
Working Env. : 0°C˜50°C, 5%˜95%RH
RS-422 Connection : T-, T+, R-, R+

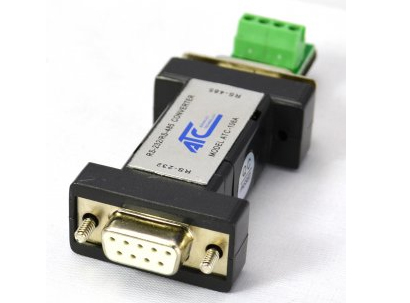

ATC-106 Economical RS-485 to RS 232 Converter

RS-232 to RS-485 Interface Converterr

Transmission Media : Twisted pair cable or shielded cable
Connector : RS-232 – DB9 Female; RS-485 – DB9 Male & Terminal BlockConnector
Operation Mode : Asynchronous half duplex
Transmission Speed : 9600BPS to 6000 feet
Supply : Port Powered (It Takes power ± 5.5 V form TD or Handshake Lines.)
Working Environment : 0°C˜50°C, 5%˜95%RH
RS-485 Connection : 485+, 485-, GND (ATC-106N)

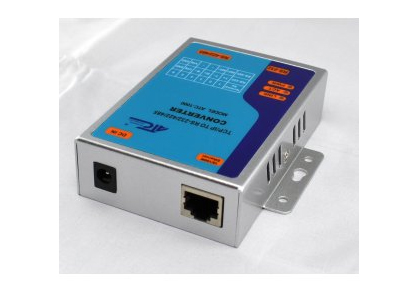

ATC-1000 Low Cost Ethernet to RS-232 / RS-485 / RS-232 Converter

The ATC-1000 is a RS232/RS485 to TCP/IP converter integrated with a robust system and network management features designed for industrial equipment to be accessed and controlled via Intranet or Internet. By integrating RTOS (Real Time Operating System) and complete TCP/IP protocol stack capability, ATC’s ATC-1000 provides not only a robust and high performance system to make your device connecting to Network, but also ease installation and Internet access. The ATC-1000 Web Configurator is a breeze to operate and totally independent of the operating system platform you use

Computer Interface : 3 in 1 RS-232/RS-422/RS-485 interface
Support : Windows 98/ME/XP/2000/ CE, MAC & Linux
Transmission rate : 230KBPS serial interface and 10/100 MBPS
Signal Indication : Link (Indicate Ethernet link),PWR (Power Indication)
ACT(Sending / Receiving data serial to Ethernet),
Supply : 9˜24VDC
Working Env. : 0°C˜70°C, 10%˜95%RH

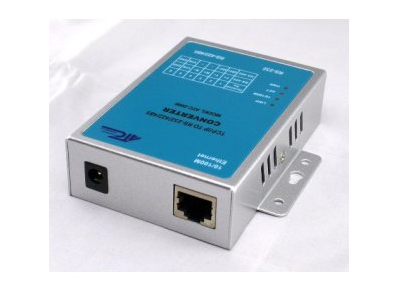

ATC-2000 Ethernet to RS-232 / RS-485 / RS-232 Converter

Serial To TCP/IP Converter ATC-2000

Computer Interface : 3 in 1 RS-232/RS-422/RS-485 interface
Transmission rate : 230KBPS serial Interface and 10/100 MBPS Ethernet
Signal Indication : LINK (Indicate Ethernet link), ACT (Sending / Receiving data serial to Ethernet), PWR (Power Indication)
Supply : 9˜24VDC
Working Environment : 0°C˜70°C, 10%˜95%RH

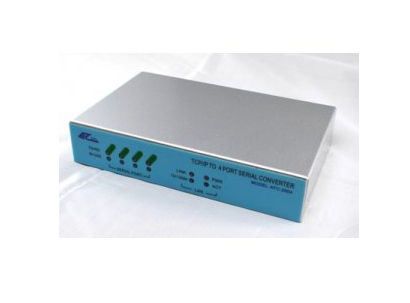

TCP/IP to 4-Port RS232/RS422/RS485 Converter : ATC-2004

TCP/IP to 4-Port RS232/RS422/RS485 Converter : ATC-2004

Computer Interface : 3 in 1 (4-Port) RS -232/RS-422/RS-485 Interface
Transmission rate : 230KBPS serial interface and 10/100 MBPS Ethernet
Signal Indication : LINK (Indicate Ethernet link), ACT (Sending / Receiving data serial to Ethernet), PWR (Power Indication)
Supply : 9˜24VDC
Working Environment : 0°C˜70°C, 10%˜95%RH

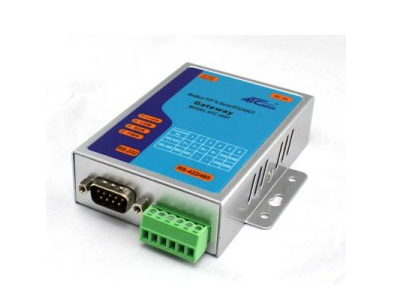

ATC-3001 MODBUS TCP / IP to MODBUS Serial RS-232 / RS-485 / RS-232 Converter

  • ATC-3001 Modbus Gateway / Modbus to TCP-IP Converter
  • Designed for Industrial Equipment
  • Ease-of-use in MODBUS protocol conversion include RTU
  • ASCII and TCP, Support Driver
  • TCP Server/Client, UDP Server/Client, Pair connection operation mode

Computer Interface : 3-in-1 RS-232/422/485 interface Max.230Kbps Serial interface and 10/100 Mbps Ethernet(Auto sensing)
Supports : Windows 8/7/98/ME/XP/2000/CE‚ MAC & Linux with 4 and 2 wire RS-485 with AUTO-SEND™ and built-in terminator
Data Rates : 1200 bps to 230,400 bps
Configuration : Web Page / Telnet / Serial console / Windows utility
Signal Indication : 10/100Base-TX Link , Date Sending / Receiving between Serial and the Ethernet PWR(Power Indication)
Software & Hardware : Xon / Xoff and RTS/CTS
CPU : 16-bit x86 Embedded CPU
Memory : 512 Kbytes Flash, 512Kbytes SDRAM, 512Kbytes EEPROM
Input Voltage : 8-24 VDC@500mA
Dimension : 95 x 65 x 25 mm – Din Rail Mounting

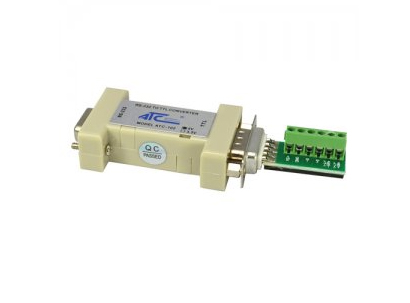

TATC-102

  • DB9-S/P space saving connector
  • RS-232C data interface fully compatible with PC
  • DB9 connector and terminal are optional to TTL interface
  • Automatic direction control of transmitting data (TXD), zero-latency design
  • Working mode: Asynchronous communication
  • High efficiency serial port electricity stealing technology, need no external power supply, real three line (TD, RD, GND) mode communication
  • Communication speed : 0-115.2kbps
  • Transmission distance : 0-10 meter@24VAWG

Communication Parameters : Interface : Compatible with the EIA/TIA RS-232-C and TTL/CMOS standard
RS-232 : TD, RD, GND
Working Mode : Point to point or point to multipoint, asynchronous communication
Direction Control : Automatic Send Data Line Control, automatic identification and control data transmission direction
Baud Rate : 300-115.2kbps，automatic detection rate of serial port signals
Transmission Distance : TTL side 10 meters (19.2 kbps)
Connector : RS-232 - DB-9 male
TTL - DB9 male or 6-pin Terminal block

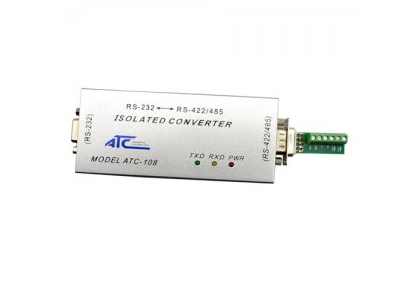

ATC-108

Port Powered RS-232 Isolator

Transmission Media : Twisted pair cable or shielded cable
Connector : DCE Side – DB 9 Female & DTE Side – DB 9 Male
Isolation : 2500V RMS Optical Isolation
Supply : Port Powered
Working Environment : 0°C˜50°C, 5%˜95%RH

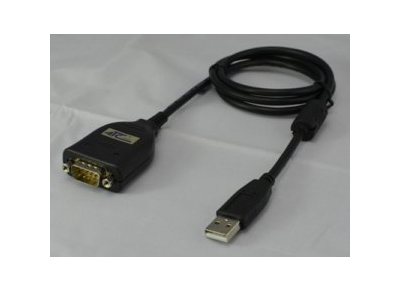

ATC-810 RS-232 to USB Converter

RS 232 TO USB CONVERTER

  • Support the RS232 Serial interface
  • Over 460Kbps data transfer rate
  • Support remote wake-up and power Management.
  • Every time same COM number when use.
  • USB Specification rev.1.1/2°0 compliant

System Requirements

  • IBM PC 486DX4-100 MHz CPU or higher/compatible system
  • Available USB port
  • CD-ROM drive
  • Windows 98/2000 /XP. or iMAG

Computer Interface : USB V1.1/2.0 Plug and Play
Support : Windows 98/ME/XP/2000/CE‚ MAC & Linux
Transmission rate : Over 460 KBPS
Signal Indication : Sending data(red) and receiving data(green) LED
Supply : From the USB port
Bus protection : 600W
Working Env. : 0°C~70°C‚ 10%~95%RH

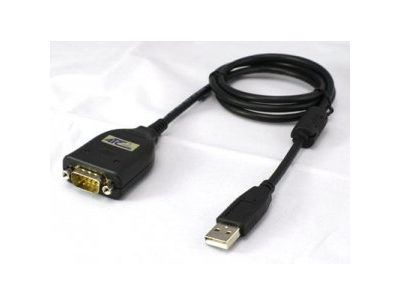

ATC-820 RS-485 to USB Converter

  • Operational system virtual serial port driver.
  • Support remote wake-up and power Management.
  • Every time same COM number when use 1 MBPS data transfer rate.
  • USB Specification rev.1.1/2°0 compliant Operational system virtual serial port driver.
  • Automatic flow control for RS485 Half Duplex.
  • MaximumRS-485 cable length : 1200 m
  • Support the RS485 Serial interface
  • Maximum number of devices in the RS485 network: Half Duplex to 32 devices
  • Power: from the USB port.
  • RS-485 bus protection: 600W.
  • USB connection: Mini-B connector. 100cm cable with the module.
  • RS-485 connector: DB9M or RJ-45 type accepting
  • ABS enclosure: 67 x 30 x 24 mm(not include cable)

Computer interface : USB V1.1/2.0 Plug and Play
Support : Windows 98/ME/XP/2000/CE‚ MAC & Linux
Trans. rate : from 300 bps to 1Mbps
Signal Indication : Sending data(red) and receiving data(green) LED
Supply : From the USB port
Bus protection : 600W
Working Environment : 0 to 70°C, 10 to 90% relative humidity, non-condensing.
Consumption : <100 mA.

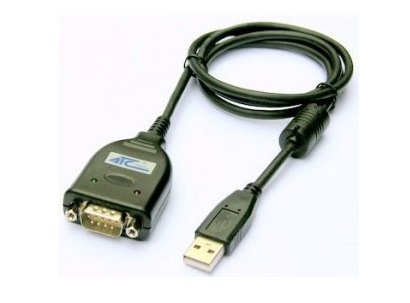

ATC-830 TTL to USB Converter

  • Supports Windows 98/ME/XP/2000/CE, MAC & Linux 2.4.20 or superior.
  • Field Interfaces:TTL logic
  • Maximum TTL cable length : 15 m
  • USB connection: Mini-B connector.120mm cable with the module.
  • TTL logic connector: DB 9 Male type accepting

Computer interface : USB V1.1 2.0 Plug and Play.
Transmission rate : from 300 bps to 1Mbps.
Power : from the USB port
Consumption : <100 mA.
logic protection : 600W.
ABS enclosure : 55 x 35 x 15 mm(not include cable)
Operating environment : 0 to 70°C, 10 to 90% relative humidity, non-condensing

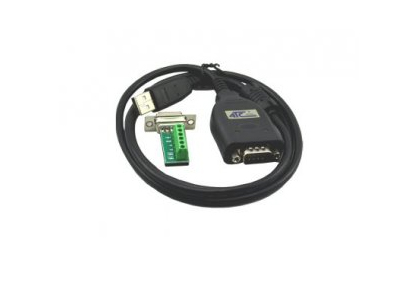

ATC-840 RS-422 to USB Converter

The ATC-840 module is a cost-effective way to convert RS422 industrial buses to a USB interface. When connected to a PC USB port the ATC-840 module is automatically detected and is installed as a native COM port which is compatible with any existing serial communication application. Muliple modules can be installed when using USB hubs thus allowing a hassle-free configuration of a multi serial system without any IRQ or DMA configuration.They have 600W protect between the USB port and RS422 protects the PC from spykes or possible misconnections in the communication bus.

  • Computer interface : USB 1.1 2.0 Plug and Play.
  • Operational system virtual serial port driver.
  • Supports Windows 98/ME/XP/2000/CE/Vista, MAC & Linux 2.4.20 or superior.
      • Field Interfaces : RS-422 Full Duplex , Automatic flow control for RS422 Full Duplex.
  • Transmission rate : from 300 bps to 1Mbps.
  • Maximum RS-422 cable length : 1200 m
  • Maximum number of devices in the RS-422 network : Full Duplex to 32 devices
  • Power: from the USB port.
  • Consumption : <100 mA.
  • RS-422 bus protection : 600W.
  • USB connection : Mini-B connector. 100mm cable with the module.
  • RS-422 connector : DB 9Male
  • ABS enclosure : 60 x 57 x 24 mm(not include cable)
  • Operating environment : 0 to 70°C, 10 to 90% relative humidity, non-condensing.

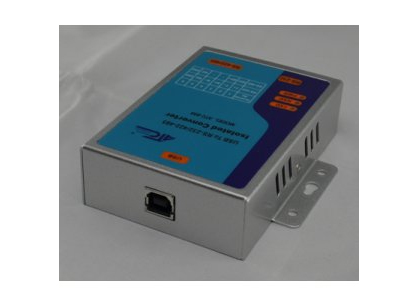

ATC-850 RS-232 / RS-422 / RS-485 (3 in 1) to USB Isolated Converter

  • Computer interface: USB 1.1 2.0 Plug and Play.
  • Operational system virtual serial port driver.
  • Maximum RS-485 cable length : 1200 m
  • Power: from the USB port
  • Consumption: <200 mA.
  • Isolation: Isolation voltage 3500VRMS 500VDC sequence
  • USB port RS-232/422/485 bus protection: 600W.
  • USB connection: USB -B female connector. 1m USB-A to USB-B cable.
  • RS-232 connector:DB9 male
  • RS-422/485 connector: 6-bit terminal socket

Computer Interface : USB V1.1/2.0 Plug and Play
Field Interfaces : RS-232, RS-422, RS-485 (Half Duplex)
Support : Windows 98/ME/XP/2000/CE‚ MAC & Linux
Field Interface : Half duplex (Dual Buses)
Isolation : Isolation Voltage 3500VRMS 500VDC sequence
Transmission rate : 300BPS to 1MBPS
Signal Indication : Sending data(red) and receiving data (green) LED
Supply : From the USB port
Bus protection : 600W
Working Environment : 0°C~70°C‚ 10%~95%RH
Size : 105 mm X 85 mm X 27 mm

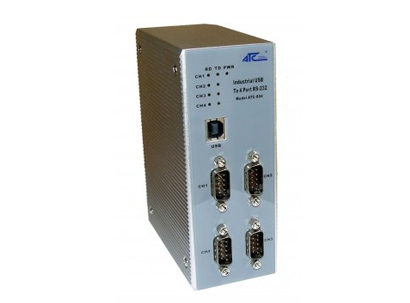

ATC-840 RS-422 to USB Converter

  • Operational system virtual serial port driver.
  • Supports Windows 95/98/Me, 2000, 2003, XP, Vista,Win7, CE, Linux ,MAC
  • Power: From the USB port or external power.
  • RS-232 protection: +15KV ESD. 600W surge protection.
  • USB connection: USB B Female connector.
  • RS-232 connector: DB9 male.
  • Aluminum enclosure dimensions 135 x54 x 108 mm
  • Weight 0.8Kg with USB cable

Computer Interface : USB V1.1/2.0 Plug and Play
Field Interface : 4 Port RS-232
Support : Windows 98/ME/XP/2000/CE, MAC & Linux
Transmission rate : 300BPS to 460.8 KBPS
Supply : From the USB port or external power
RS-232 protection : 600W Surge Protection
Working Environment : 0°C˜70°C, 10%˜95%RH
Transmission rate : from 300 bps to 460.8Kbps.
Consumption : <300 mA.
Operating environment : -40 to 70°C, 10 to 90%relative humidity, non-condensing

Products

Products

Quick Links

Reach Us

  • 7 - 2 - 202 , II Floor
    Ghasmandi Road, Near Ranigunj
    Secunderabad - 500 003
  • Phone: 040-64521987, 9246366871
  • Email: nasconin@gmail.com
© 2017. Nascon Instruments.
Developed by Trillion IT
