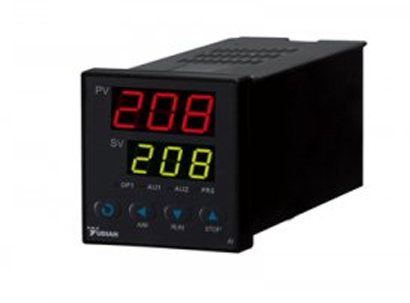

Yudian AI-208 Economical Temp Controller
- Thermocouple / PT-100 Selection
- Relay or SSR Output
Basic function of instrument AI-208 economical intelligent temperature controller
- AI-208G,with SSR voltage output, no alarm output
- AI-208GL1,with SSR voltage o/p+1 Relay alarm o/p (N.O./ N.C.) OR 1 contact output,no alarm o/p.
- AI-208GL3,with SSR voltage o/p+1 Relay alarm o/p (N.O.) & 1 contact o/p & alarm o/p.
Front panel dimension
- D2 front panel 48 X 48mm (width X height), cut out 45 X 45mm
- D front panel 72 X 72mm (width X height), cut out 68 X 68mm
- A front panel 96 X 96mm (width X height), cut out 92 X 92mm
input type: K‚S‚R‚E‚J‚N (Thermocouple) and PT100 (RTD)
Instrument Input range: K, E, J, N (0~+999)°C, Pt100(0~+800)°C
Measurement accuracy: 0.3%FS±1°C
Temp display resolution: 0 or 0.0 (0.0 just for 0~99.9 display)
Control Mode: On-off control mode and PID control with auto-tuning.
Power supply voltage rating: 100-240VAC, -15%, +10% / 50-60Hz.
Power consumption: ≤2W
Size: 96×96mm, 72×72mm, 48×48mm, 48×96mm, 96×48mm
Ambient temperature: -10~+60℃, Humidity: 0~90RH%
