Gas Detection Solutions

The GT-2500-series Transmitter has a LED Display which is resistant to poisoning and etching and has digital display of gas concentration on it. The Gas Transmitter has the feature of easy handling and programming with 3 keys for weatherproof model and can be programmed using remote control from 10 meters in line of site distance. The Gas Transmitter has non-intrusive programming and password protected programming with password changing facility. This Gas Transmitter has optional alarm relay contacts with two configurable alarm levels and one relay for fail safe relay.

The GT-2500-series are available in weatherproof enclosures and also in CMRI tested flameproof enclosures.

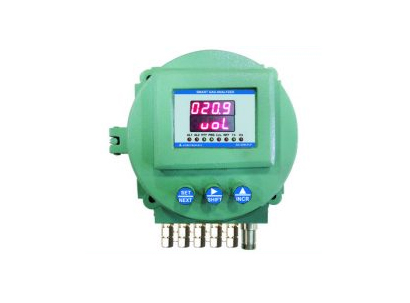

The GA-3500-series Smart Gas Analyzer is a micro controller based gas transmitter with LED display, that continuously monitors Oxygen / Toxic / Combustible gases in PPM / %V/V / %LEL / PPB depending upon the gas selected.

It is ideally suited for harsh environment in industries where human interference is not possible in toxic or combustible gases area. It is capable of displaying the gas concentration and transmits the data to control units through standard 4-20 mA output.

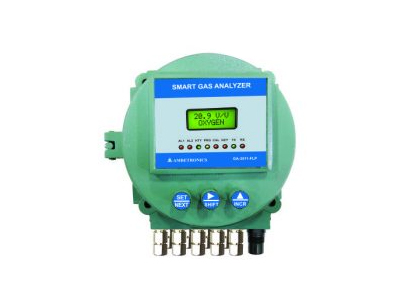

The GA-3511-series Smart Gas Analyzer is a micro controller based gas transmitter LED display, that continuously monitors Oxygen / Toxic / Combustible gases in PPM / %V/V / %LEL / PPB depending upon the gas selected.

It is ideally suited for harsh environment in industries where human interference is not possible in toxic or combustible gases area. It is capable of displaying the gas concentration and transmits the data to control units through standard 4-20 mA output.

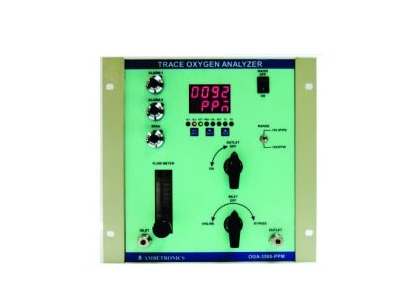

AEPL series ‘OGA-3500-PPM’ Trace Oxygen Analyser is a micro-controller based equipment designed for measuring the concentration of oxygen (ppm) content in a tube through which inert gas(nitrogen or argon) is flowing. It is capable of measuring the low concentration of Oxygen in the range of 0 to 199.9 or 0 to 1999 ppm.

It is based on Electrochemical (Galvanic cell) type measurement method. The flow meter can be used with pressurized sources like gas cylinder or pipeline.

Single Channel Gas Alert Monitor GM-1100-series has the feature of dual display of gas concentration and set point/ unit of gas and is micro controller based type in nature.

This Monitor has the feature of warning and alarm output and audio visual alarm indication. The Monitor has two independent alarm relay output and has the feature of easy one man calibration at site.

The Single Gas Alert Monitor has password protected programming with password changing facility and has user friendly operation.

Dual Channel Gas Monitor GM-2200-sereis has two independent displays for any two gas detector selected by user and is offered in micro controller based manner that ensures accurate performance that eliminates false alarm.

The Gas Monitor has long term stability and audio visual gas leakage indication. The Gas Monitor has one individual alarm relay contact separate for each channel and is offered in wall mounted design.

The Dual Channel Gas Monitor is suitable for hazardous area and has password protected programming feature with password change facility.

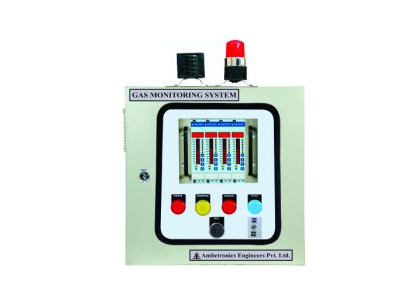

These Rack Type Multi-channel Gas Monitors come in different ranges starting from 4-Channel, 8-Channel, 16-Channel, 32-Channel, 80-Channel and so on, and are further easily expandable as per Client requirement.

It has fail-safe operational design and has modular design card with individual display with bar graph indication for each transmitter. It requires easy maintenance and is designed with individual alarm relay/ open collector outputs for each gas transmitter.The Monitor is offered in such a manner that the gas range, resolution, control action, latch facility is programmable by users/ multilayer password protected. The Rack Type Multi-channel Gas Monitor has easy automatic software calibration and inhibits/ service mode that ensures that at the time of maintenance alarm relay becomes inactive.
